The Dell PowerEdge T320 is a 5U, 1-socket, rackable tower server. For additional system views and features, see the Dell PowerEdge T320 Systems Owner

Figure 3 shows the features on the back panel of the T320 including USB connectors, Ethernet connectors, serial connector, video connector, PCIe slo

Figure 5 shows the front view of the rackable T320 chassis without a bezel.

Table 5 lists the various features on the T320. For additional information, see the Dell PowerEdge T320 Systems Owner’s Manual on Support.Dell.com/Man

The T320 control panel is located on the front of the chassis as shown in Figure 6. For more information about the LCD control panel, see the Dell Pow

The latest generation of PowerEdge servers has the features listed in Table 6 to help ensure the security of your data center. Security feature Descr

The Dell PowerEdge T320 features a variety of Intel processor options. The Intel Xeon processor E5-2400 product family offers an ideal combination o

Model Speed TDP Cache Cores/ threads Max memory speed Turbo Xeon E5-2470 2.3GHz 95W 20MB 8/16 1600MT/s Yes Xeon E5-2440 2.4GHz 95W 15MB 6/12 1333MT/s

More options are available for the Dell PowerEdge 12th generation servers than in previous generations—more capacity choices and more frequency choic

The T320 supports the DIMMs listed in Table 9. For the latest information on supported memory, visit Dell.com. Capacity (GB) Speed (MT/s) Type Ranks

This document is for informational purposes only. Dell reserves the right to make changes without further notice to any pro

The T320 supports memory speeds of 1600MT/s, 1333MT/s, 1066MT/s, and 800MT/s depending on the DIMM types installed and the configuration. All memory o

Feature Description Memory demand and patrol scrubbing Demand scrubbing is the ability to write corrected data back to the memory once a correctable e

The Dell PowerEdge T320 supports internal and external storage options and controllers, different drive types, and different chassis configurations f

Dell provides highly capable RAID options for you to ensure that your data remains safe. Dell’s RAID controller options offer impressive performance i

The T320 hot-plug chassis supports up to three media bays through one of the following options:  Up to two SATA half-height DVD-ROM or DVD R/W drive

The Dell PowerEdge T320 offers balanced, scalable I/O capabilities, including integrated PCIe 3.0 capable expansion slots. The T320 system board has

Lower overall system-level power draw is a result of breakthrough system design. The Dell PowerEdge T320 server maximizes performance per watt throug

Feature Description Active power management (redundant PSU only) Intel Node Manager is an embedded technology that provides individual server-level po

Figure 8 shows a 750W power supply unit extended from the T320 chassis. The PowerEdge T320 supports up to two PSUs with 1+1 redundancy, auto-sensin

The thermal design of the PowerEdge T320 reflects the following:  Multiple sensors are monitored for thermal feedback control: The PowerEdge T320 dy

Table of contents 1 System overview ...

 Noise ramp and descent during bootup from power off: Fan speed noise levels ramp during the boot process (from power off to power on) to add a lay

The sliding rail system for the Dell PowerEdge T320 provides tool-less support for 4-post racks with square or unthreaded round mounting holes. Compa

Table 19 lists the supported rack types for the T320. Product Rail Identifier Mounting Interface Rail Type Rack Types Supported 4-Post 2-Post Square

The Dell PowerEdge T320 supports a wide range of industry-standard operating systems and virtualization software. Table 20 lists the primary operatin

One of the key features for virtualization on the PowerEdge T320 is the support for a fail-safe hypervisor. By running a hypervisor on an optional SD

Whether your IT environment consists of a few servers or a few thousand servers, Dell OpenManage systems management solutions provide comprehensive

The Dell OpenManage systems management portfolio includes powerful hardware and software management tools and consoles. OpenManage simplifies the life

Feature Function Benefit Electronic licensing Upgrades to iDRAC7 Express or iDRAC7 Enterprise by software licensing key and license portal (may requir

Basic management iDRAC7 Express iDRAC7 Enterprise Remote CLI ∞ ∞ Local/SSH CLI ∞ ∞ Serial redirection ∞ ∞ Remote config ∞ ∞ Email al

Most systems management solutions require pieces of software, called agents, to be installed on each node in order to be managed within the IT environ

Standards compliance ... 4

 Dell OpenManage Server Update Utility—The Dell Server Update Utility (SUU) is a DVD-based application for identifying and applying BIOS and firmwar

Dell OpenManage provides connections with many third-party consoles, including:  Dell OpenManage Connection for Computer Associates Network and Sys

Table 24 lists the products that are available for one-to-one and one-to-many operations, and when they are used in the server’s lifecycle: Operation

Figure 12 details the dimensions of the Dell™ PowerEdge™ T320 chassis. Xa Xb Ya Yb Yc Za with bezel Za without bezel Zb1 Zc 218.0mm 304.5mm (foot)

Specification Redundant 750W Redundant 495W Non-redundant 350W Maximum inrush current2 55A 55A 55A 1Auto-ranging 2Under typical line conditions and o

Relative humidity Operating See Fresh Air for relative humidity information Storage 5% to 95% at a maximum wet bulb temperature of 33°C (91°F); atmosp

Table 29 lists the spacing dimensions for the T320 sliding rails. Product Rail identifier Rail type Rail adjustability range (mm) Rail depth (mm) Sq

The Dell PowerEdge T320 conforms to the industry standards listed in Table 30. Standard URL for information and specifications ACPI Advance Config

Table 31 provides a list of documents and websites that provide for more information on the Dell PowerEdge T320. Resource Description of contents

Resource Description of contents Location This code on the chassis can be scanned by a phone application to access additional information and resource

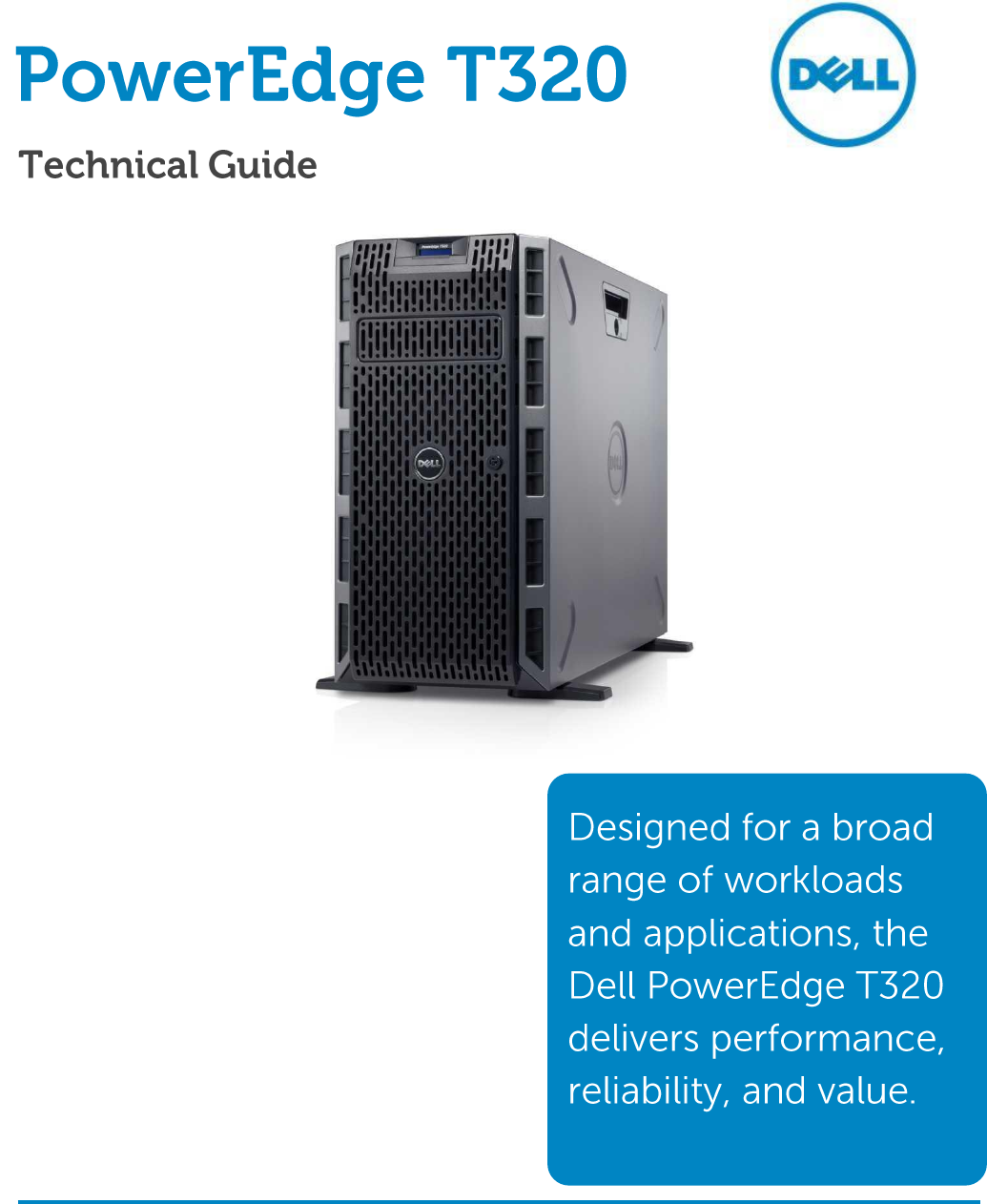

The 1-socket Dell™ PowerEdge™ T320 tower server delivers performance, scalability and enterprise-class reliability, availability, and serviceability

Table 1 summarizes the newest technologies used in the Dell PowerEdge T320 tower server. New technologies Detailed descriptions New Intel processors

Compared to the previous generation PowerEdge T310, the T320 supports up to 100% more processor cores, up to 300% more internal storage capacity, PCI

Table 3 summarizes the specifications for each of the PowerEdge T320 features. For the latest information on supported features for the PowerEdge T320

Feature PowerEdge T320 technical specification Intel I350 Dual Port 1Gb Base-T Intel I350 Quad Port 1Gb Base-T FC4 HBA: QLogic QLE2460 Single Port 4
